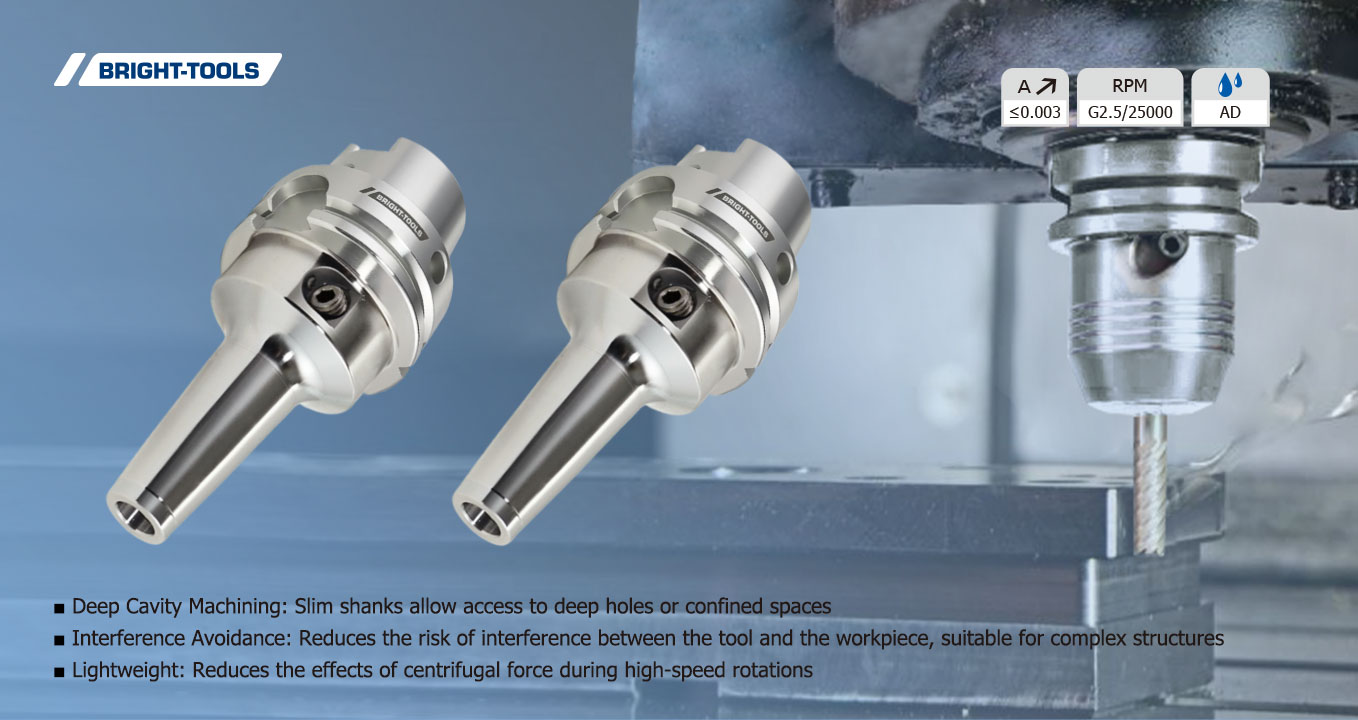

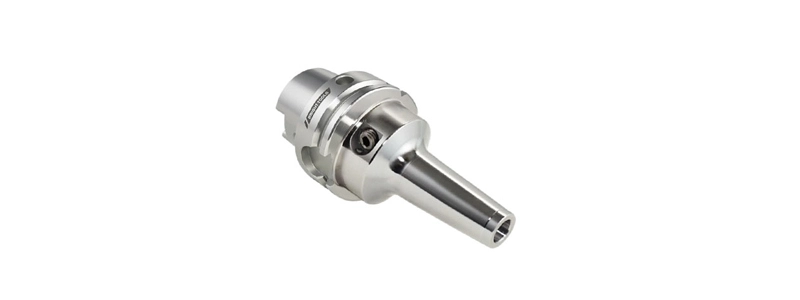

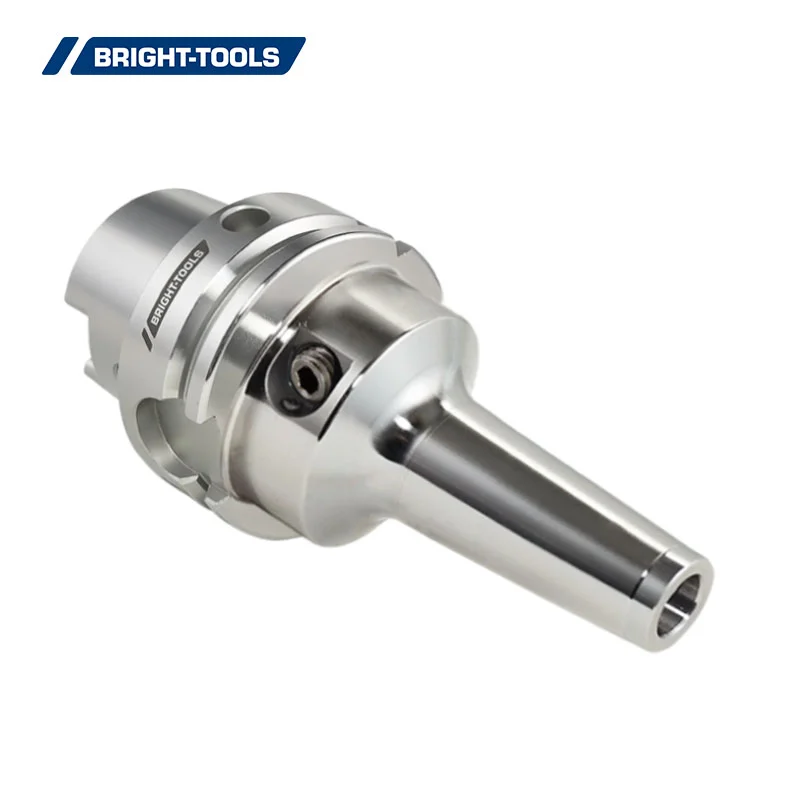

Name: HSK Hydraulic Chuck, Slim
Brand: Shandong Jinjie Machinery Co., Ltd.
Availability: InStock

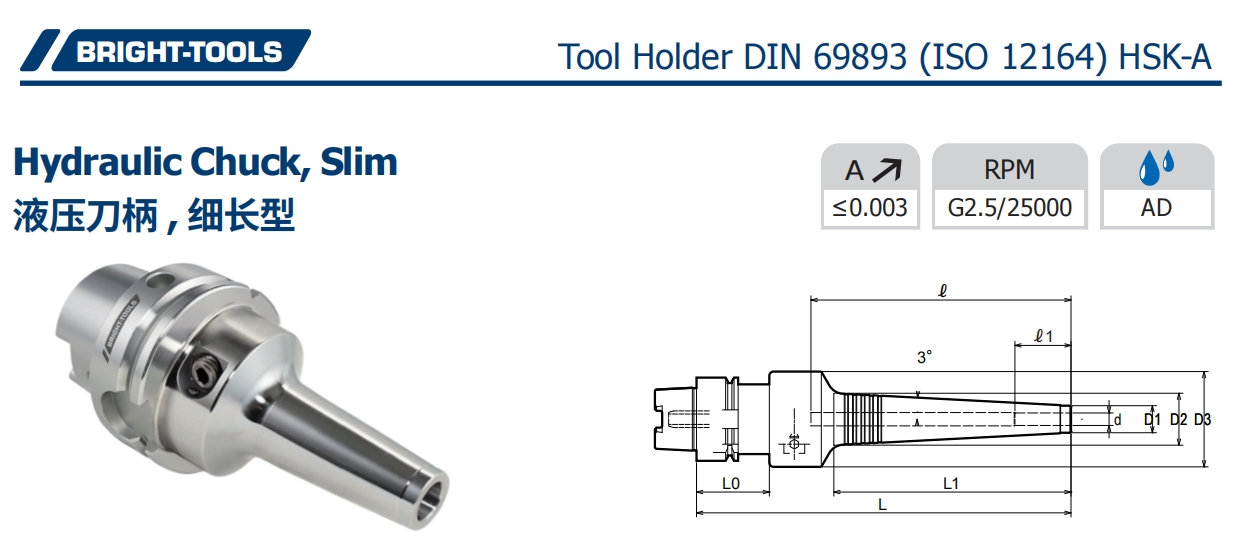

SPECIFICATION OF HSK Hydraulic Chuck, Slim

Size	Type	d	L	L1	D1	D2	D3	L0	ℓ	ℓ1
HSK40A-HYS03-90	1	03	90	28	11	14.0	46	35	74	16
HSK40A-HYS03-100	1	03	100	37	11	14.9	46	35	84	16
HSK40A-HYS03-145	1	03	145	84	11	19.9	46	35	129	16
HSK40A-HYS04-90	1	04	90	28	11	14.0	46	35	74	19
HSK40A-HYS04-100	1	04	100	37	11	14.9	46	35	84	19
HSK40A-HYS04-145	1	04	145	84	11	19.9	46	35	129	19
HSK40A-HYS06-105	1	06	105	38	13	17.0	46	35	55	27
HSK40A-HYS06-150	1	06	150	84	13	21.9	46	35	97	27
HSK40A-HYS06-165	1	06	165	99	13	23.4	46	35	112	27
HSK40A-HYS06-180	1	06	180	114	13	25.0	46	35	127	27
HSK40A-HYS07-105	1	07	105	38	14	18.0	46	35	55	27
HSK40A-HYS07-150	1	07	150	84	14	22.9	46	35	97	27
HSK40A-HYS07-165	1	07	165	99	14	24.4	46	35	112	27
HSK40A-HYS07-180	1	07	180	114	14	26.0	46	35	127	27
HSK40A-HYS08-105	1	08	105	38	15	19.0	46	35	55	27
HSK40A-HYS08-150	1	08	150	84	15	23.9	46	35	97	27
HSK40A-HYS08-165	1	08	165	99	15	25.4	46	35	112	27
HSK40A-HYS08-180	1	08	180	114	15	27.0	46	35	127	27
HSK40A-HYS09-120	1	09	120	53	16	21.6	46	35	69	33
HSK40A-HYS09-150	1	09	150	84	16	24.9	46	35	97	33
HSK40A-HYS09-165	1	09	165	99	16	26.4	46	35	112	33
HSK40A-HYS09-180	1	09	180	114	16	28.0	46	35	127	33
HSK40A-HYS10-120	1	10	120	53	17	22.6	46	35	69	33
HSK40A-HYS10-150	1	10	150	84	17	25.9	46	35	97	33
HSK40A-HYS10-165	1	10	165	99	17	27.4	46	35	112	33
HSK40A-HYS10-180	1	10	180	114	17	29.0	46	35	127	33
HSK40A-HYS11-120	1	11	120	53	18	23.6	46	35	69	36
HSK40A-HYS11-150	1	11	150	84	18	26.9	46	35	97	36
HSK40A-HYS11-165	1	11	165	99	18	28.4	46	35	112	36
HSK40A-HYS11-180	1	11	180	114	18	30.0	46	35	127	36
HSK40A-HYS12-120	1	12	120	53	19	24.6	46	35	69	36
HSK40A-HYS12-150	1	12	150	84	19	27.9	46	35	97	36
HSK40A-HYS12-165	1	12	165	99	19	29.4	46	35	112	36
HSK40A-HYS12-180	1	12	180	114	19	31.0	46	35	127	36
HSK50A-HYS03-95	1	03	95	28	11	14.0	46	42	75	16
HSK50A-HYS03-105	1	03	105	37	11	14.9	46	42	85	16
HSK50A-HYS03-150	1	03	150	84	11	19.9	46	42	130	16
HSK50A-HYS04-95	1	04	95	28	11	14.0	46	42	75	19
HSK50A-HYS04-105	1	04	105	37	11	14.9	46	42	85	19
HSK50A-HYS04-150	1	04	150	84	11	19.9	46	42	130	19
HSK50A-HYS06-105	1	06	105	38	13	17.0	46	42	53	27
HSK50A-HYS06-150	1	06	150	84	13	21.9	46	42	95	27
HSK50A-HYS06-165	1	06	165	99	13	23.4	46	42	110	27
HSK50A-HYS06-180	1	06	180	114	13	25.0	46	42	125	27
HSK50A-HYS07-105	1	07	105	38	14	18.0	46	42	53	27
HSK50A-HYS07-150	1	07	150	84	14	22.9	46	42	95	27
HSK50A-HYS07-165	1	07	165	99	14	24.4	46	42	110	27
HSK50A-HYS07-180	1	07	180	114	14	26.0	46	42	125	27
HSK50A-HYS08-105	1	08	105	38	15	19.0	46	42	53	27
HSK50A-HYS08-150	1	08	150	84	15	23.9	46	42	95	27
HSK50A-HYS08-165	1	08	165	99	15	25.4	46	42	110	27
HSK50A-HYS08-180	1	08	180	114	15	27.0	46	42	125	27
HSK50A-HYS09-120	1	09	120	53	16	21.6	46	42	67	33
HSK50A-HYS09-150	1	09	150	84	16	24.9	46	42	95	33
HSK50A-HYS09-165	1	09	165	99	16	26.4	46	42	110	33
HSK50A-HYS09-180	1	09	180	114	16	28.0	46	42	125	33
HSK50A-HYS10-120	1	10	120	53	17	22.6	46	42	67	33
HSK50A-HYS10-150	1	10	150	84	17	25.9	46	42	95	33
HSK50A-HYS10-165	1	10	165	99	17	27.4	46	42	110	33
HSK50A-HYS10-180	1	10	180	114	17	29.0	46	42	125	33
HSK50A-HYS11-120	1	11	120	53	18	23.6	46	42	67	36
HSK50A-HYS11-150	1	11	150	84	18	26.9	46	42	95	36
HSK50A-HYS11-165	1	11	165	99	18	28.4	46	42	110	36
HSK50A-HYS11-180	1	11	180	114	18	30.0	46	42	125	36
HSK50A-HYS12-120	1	12	120	53	19	24.6	46	42	67	36
HSK50A-HYS12-150	1	12	150	84	19	27.9	46	42	95	36
HSK50A-HYS12-165	1	12	165	99	19	29.4	46	42	110	36
HSK50A-HYS12-180	1	12	180	114	19	31.0	46	42	125	36
HSK63A-HYS03-80	2	03	80	28	11	14.0	46		58	16
HSK63A-HYS03-90	2	03	90	37	11	14.9	46		68	16
HSK63A-HYS03-135	2	03	135	84	11	19.9	46		113	16
HSK63A-HYS04-80	2	04	80	28	11	14.0	46		58	19
HSK63A-HYS04-90	2	04	90	37	11	14.9	46		68	19
HSK63A-HYS04-135	2	04	135	84	11	19.9	46		113	19
HSK63A-HYS06-90	2	06	90	38	13	17.0	46		53	27
HSK63A-HYS06-135	2	06	135	84	13	21.9	46		92	27
HSK63A-HYS06-150	2	06	150	99	13	23.4	46		107	27
HSK63A-HYS06-165	2	06	165	114	13	25.0	46		122	27
HSK63A-HYS06-180	2	06	180	130	13	26.7	46		137	27
HSK63A-HYS07-90	2	07	90	38	14	18.0	46		53	27
HSK63A-HYS07-135	2	07	135	84	14	22.9	46		92	27
HSK63A-HYS07-150	2	07	150	99	14	24.4	46		107	27
HSK63A-HYS07-165	2	07	165	114	14	26.0	46		122	27
HSK63A-HYS07-180	2	07	180	130	14	27.7	46		137	27
HSK63A-HYS08-90	2	08	90	38	15	19.0	46		53	27
HSK63A-HYS08-135	2	08	135	84	15	23.9	46		92	27
HSK63A-HYS08-150	2	08	150	99	15	25.4	46		107	27
HSK63A-HYS08-165	2	08	165	114	15	27.0	46		122	27
HSK63A-HYS08-180	2	08	180	130	15	28.7	46		137	27
HSK63A-HYS09-105	2	09	105	53	16	21.6	46		67	33
HSK63A-HYS09-135	2	09	135	84	16	24.9	46		92	33
HSK63A-HYS09-150	2	09	150	99	16	26.4	46		107	33
HSK63A-HYS09-165	2	09	165	114	16	28.0	46		122	33
HSK63A-HYS09-180	2	09	180	130	16	29.7	46		137	33
HSK63A-HYS10-105	2	10	105	53	17	22.6	46		67	33
HSK63A-HYS10-135	2	10	135	84	17	25.9	46		92	33
HSK63A-HYS10-150	2	10	150	99	17	27.4	46		107	33
HSK63A-HYS10-165	2	10	165	114	17	29.0	46		122	33
HSK63A-HYS10-180	2	10	180	130	17	30.7	46		137	33
HSK63A-HYS11-105	2	11	105	53	18	23.6	46		67	36
HSK63A-HYS11-135	2	11	135	84	18	26.9	46		92	36
HSK63A-HYS11-150	2	11	150	99	18	28.4	46		107	36
HSK63A-HYS11-165	2	11	165	114	18	30.0	46		122	36
HSK63A-HYS11-180	2	11	180	130	18	31.7	46		137	36
HSK63A-HYS12-105	2	12	105	53	19	24.6	46		67	36
HSK63A-HYS12-135	2	12	135	84	19	27.9	46		92	36
HSK63A-HYS12-150	2	12	150	99	19	29.4	46		107	36
HSK63A-HYS12-165	2	12	165	114	19	31.0	46		122	36
HSK63A-HYS12-180	2	12	180	130	19	32.7	46		137	36
HSK63A-HYS16-135	2	16	135	84	23	31.9	52.5		91	40
HSK63A-HYS16-165	2	16	165	114	23	35.0	52.5		120	40
HSK63A-HYS16-180	2	16	180	129	23	36.6	52.5		135	40
HSK63A-HYS20-150	1	20	150	84	28	36.9	60	42	91	40
HSK63A-HYS20-180	1	20	180	114	28	40.0	60	42	120	40
HSK63A-HYS20-195	1	20	195	129	28	41.6	60	42	135	40
HSK63A-HYS25-150	1	25	150	84	37	45.9	60	42	91	50
HSK63A-HYS25-180	1	25	180	114	37	49.0	60	42	120	50
HSK63A-HYS25-195	1	25	195	129	37	50.6	60	42	135	50
HSK100A-HYS06-105	2	06	105	38	13	17.0	46		53	27
HSK100A-HYS06-150	2	06	150	84	13	21.9	46		92	27
HSK100A-HYS06-165	2	06	165	99	13	23.4	46		107	27
HSK100A-HYS06-180	2	06	180	114	13	25.0	46		122	27
HSK100A-HYS06-195	2	06	195	130	13	26.7	46		137	27
HSK100A-HYS07-105	2	07	105	38	14	18.0	46		53	27
HSK100A-HYS07-150	2	07	150	84	14	22.9	46		92	27
HSK100A-HYS07-165	2	07	165	99	14	24.4	46		107	27
HSK100A-HYS07-180	2	07	180	114	14	26.0	46		122	27
HSK100A-HYS07-195	2	07	195	130	14	27.7	46		137	27
HSK100A-HYS08-105	2	08	105	38	15	19.0	46		53	27
HSK100A-HYS08-150	2	08	150	84	15	23.9	46		92	27
HSK100A-HYS08-165	2	08	165	99	15	25.4	46		107	27
HSK100A-HYS08-180	2	08	180	114	15	27.0	46		122	27
HSK100A-HYS08-195	2	08	195	130	15	28.7	46		137	27
HSK100A-HYS09-150	2	09	150	84	16	24.9	46		92	33
HSK100A-HYS09-165	2	09	165	99	16	26.4	46		107	33
HSK100A-HYS09-180	2	09	180	114	16	28.0	46		122	33
HSK100A-HYS09-195	2	09	195	130	16	29.7	46		137	33
HSK100A-HYS10-150	2	10	150	84	17	25.9	46		92	33
HSK100A-HYS10-165	2	10	165	99	17	27.4	46		107	33
HSK100A-HYS10-180	2	10	180	114	17	29.0	46		122	33
HSK100A-HYS10-195	2	10	195	130	17	30.7	46		137	33
HSK100A-HYS11-150	2	11	150	84	18	26.9	46		92	36
HSK100A-HYS11-165	2	11	165	99	18	28.4	46		107	36
HSK100A-HYS11-180	2	11	180	114	18	30.0	46		122	36
HSK100A-HYS11-195	2	11	195	130	18	31.7	46		137	36
HSK100A-HYS12-150	2	12	150	84	19	27.9	46		92	36
HSK100A-HYS12-165	2	12	165	99	19	29.4	46		107	36
HSK100A-HYS12-180	2	12	180	114	19	31.0	46		122	36
HSK100A-HYS12-195	2	12	195	130	19	32.7	46		137	36
HSK100A-HYS16-150	2	16	150	84	23	31.9	52.5		91	40
HSK100A-HYS16-180	2	16	180	114	23	35.0	52.5		120	40
HSK100A-HYS16-195	2	16	195	129	23	36.6	52.5		135	40
HSK100A-HYS20-150	2	20	150	84	28	36.9	60		91	40
HSK100A-HYS20-180	2	20	180	114	28	40.0	60		120	40
HSK100A-HYS20-195	2	20	195	129	28	41.6	60		135	40
HSK100A-HYS25-150	2	25	150	84	37	45.9	60		91	50
HSK100A-HYS25-180	2	25	180	114	37	49.0	60		120	50
HSK100A-HYS25-195	2	25	195	129	37	50.6	60		135	50
