Name: CAT Hydraulic Chuck, Slim
Brand: Shandong Jinjie Machinery Co., Ltd.
Availability: InStock

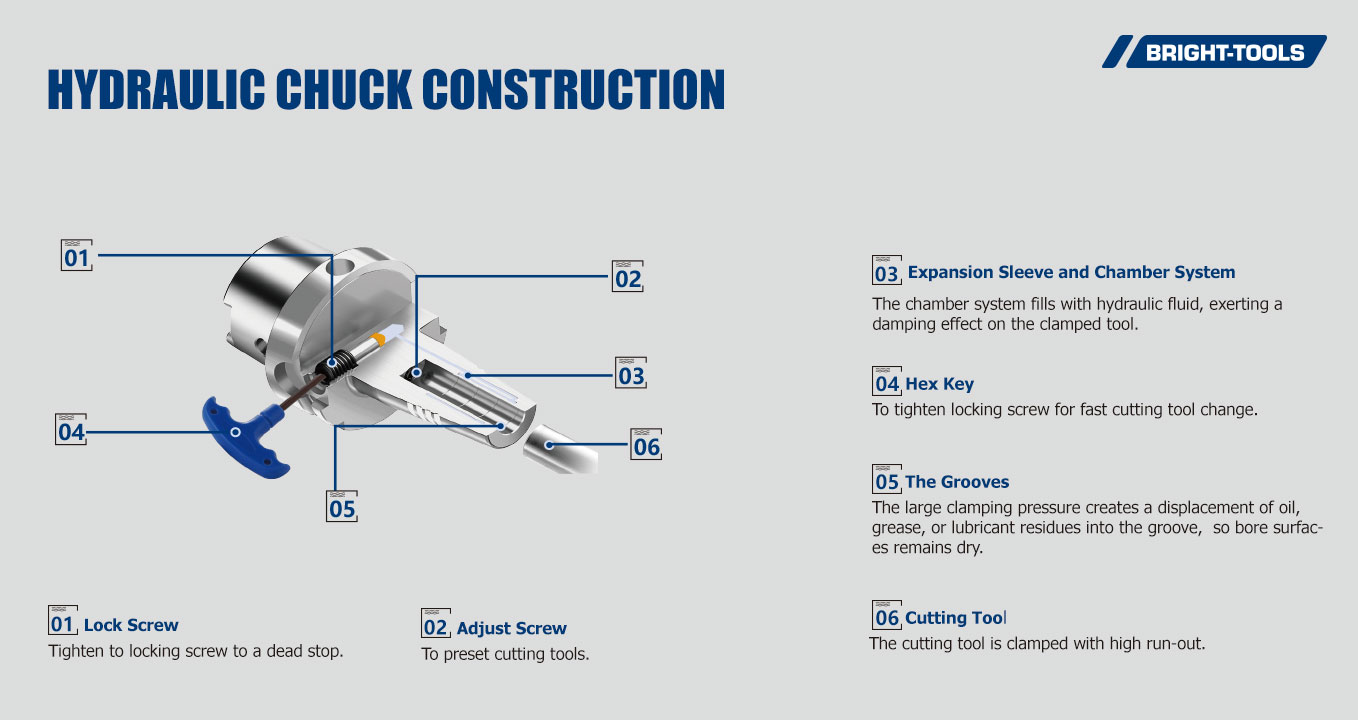

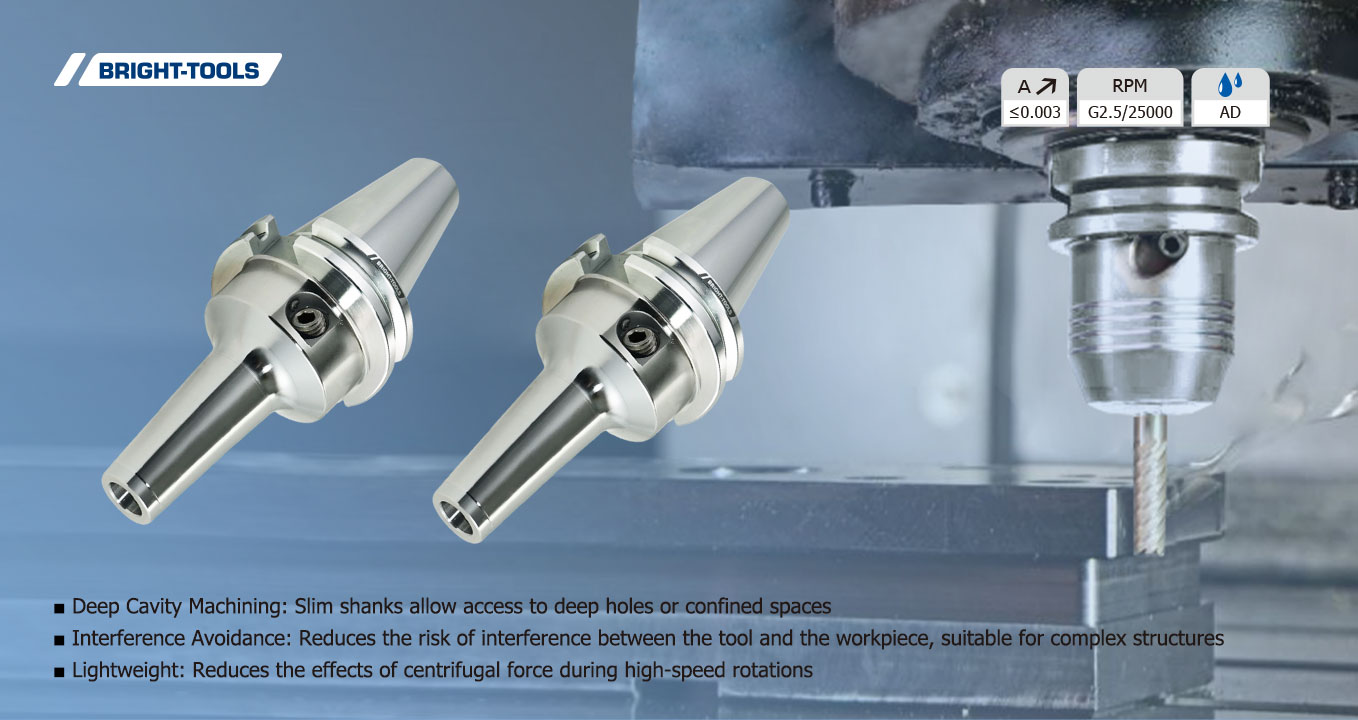

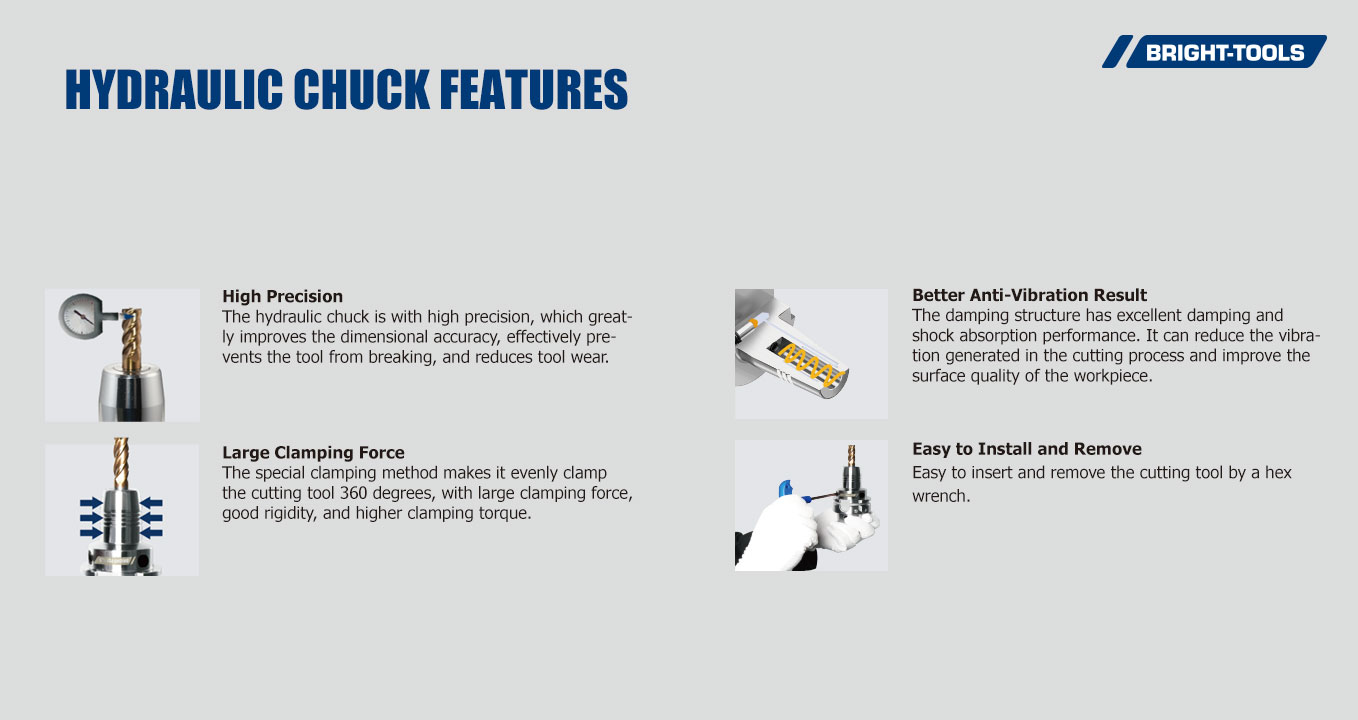

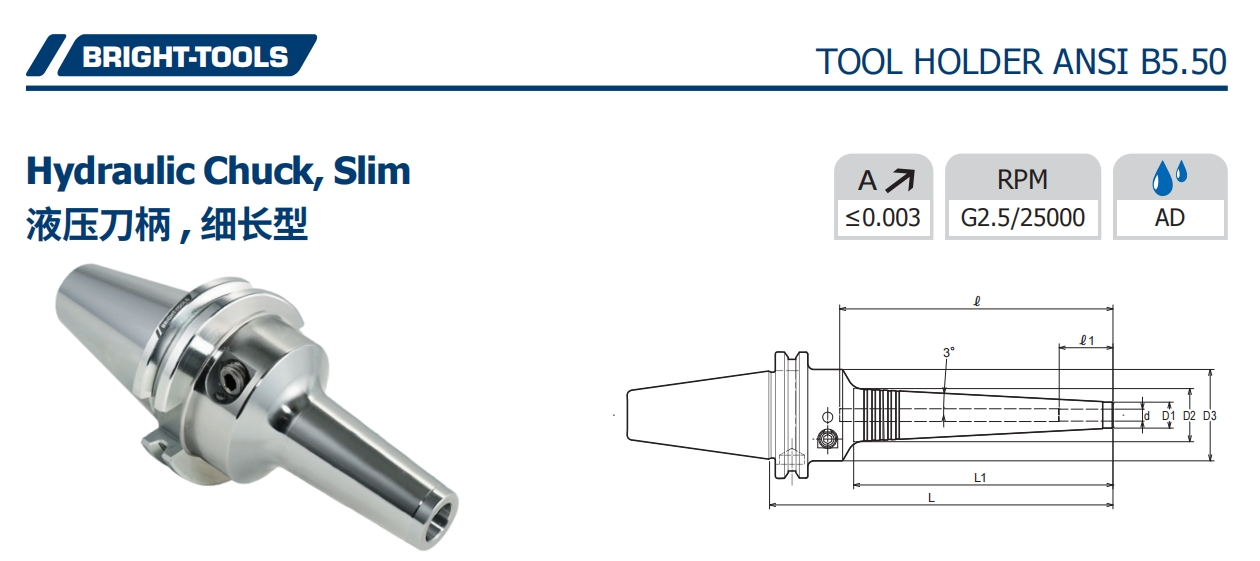

SPECIFICATION OF CAT Hydraulic Chuck, Slim

Size	d	L	L1	D1	D2	D3	L	ℓ1
CAT40-HYS03-75	03	75	28	11	14	46	110	16
CAT40-HYS03-90	03	90	37	11	14.9	46	125	16
CAT40-HYS03-135	03	135	84	11	19.9	46	170	16
CAT40-HYS04-75	04	75	28	11	14	46	110	19
CAT40-HYS04-90	04	90	37	11	14.9	46	125	19
CAT40-HYS04-135	04	135	84	11	19.9	46	170	19
CAT40-HYS06-90	06	90	38	13	17	46	53	27
CAT40-HYS06-150	06	150	84	13	21.9	46	92	27
CAT40-HYS06-165	06	165	99	13	23.4	46	107	27
CAT40-HYS06-180	06	180	114	13	25	46	122	27
CAT40-HYS06-195	06	195	130	13	26.7	46	137	27
CAT40-HYS07-90	07	90	38	14	18	46	53	27
CAT40-HYS07-150	07	150	84	14	22.9	46	92	27
CAT40-HYS07-165	07	165	99	14	24.4	46	107	27
CAT40-HYS07-180	07	180	114	14	26	46	122	27
CAT40-HYS07-195	07	195	130	14	27.7	46	37	27
CAT40-HYS08-90	08	90	38	15	19	46	53	27
CAT40-HYS08-150	08	150	84	15	23.9	46	92	27
CAT40-HYS08-165	08	165	99	15	25.4	46	107	27
CAT40-HYS08-180	08	180	114	15	27	46	122	27
CAT40-HYS08-195	08	195	130	15	28.7	46	137	27
CAT40-HYS09-105	09	105	53	16	21.6	46	68	33
CAT40-HYS09-150	09	150	84	16	24.9	46	92	33
CAT40-HYS09-165	09	165	99	16	26.4	46	107	33
CAT40-HYS09-180	09	180	114	16	28	46	122	33
CAT40-HYS09-195	09	195	130	16	29.7	46	137	33
CAT40-HYS10-105	10	105	53	17	22.6	46	68	33
CAT40-HYS10-150	10	150	84	17	25.9	46	92	33
CAT40-HYS10-165	10	165	99	17	27.4	46	107	33
CAT40-HYS10-180	10	180	114	17	29	46	122	33
CAT40-HYS10-195	10	195	130	17	30.7	46	137	33
CAT40-HYS11-105	11	105	53	18	23.6	46	68	36
CAT40-HYS11-150	11	150	84	18	26.9	46	92	36
CAT40-HYS11-165	11	165	99	18	28.4	46	107	36
CAT40-HYS11-180	11	180	114	18	30	46	122	36
CAT40-HYS11-195	11	195	130	18	31.7	46	137	36
CAT40-HYS12-105	12	105	53	19	24.6	46	68	36
CAT40-HYS12-150	12	150	84	19	27.9	46	92	36
CAT40-HYS12-165	12	165	99	19	29.4	46	107	36
CAT40-HYS12-180	12	180	114	19	31	46	122	36
CAT40-HYS12-195	12	195	130	19	32.7	46	137	36
CAT40-HYS16-150	16	150	84	23	31.9	52.5	91	40
CAT40-HYS16-180	16	180	114	23 23	35	52.5	120	40
CAT40-HYS16-195	16	195	129	23 23	38.6	52.5	135	40
CAT40-HYS20-150	20	150	84	28	36.9	60	91	40
CAT40-HYS20-180	20	180	114	28	40	60	120	40
CAT40-HYS20-195	20	195	129	28	41	60	135	40
CAT40-HYS25-150	25	150	84	37	45.9	60	91	50
CAT40-HYS25-180	25	180	114	37	49	60	120	50
CAT40-HYS25-195	25	195	129	37	50.6	60	135	50

Size		L	L1	L2	D1	D2	D3	ℓ
CAT50-HYS06-150	06	150	84	115	13	21.9	46	92
CAT50-HYS06-195	06	195	130	160	13	26.7	46	137
CAT50-HYS08-150	08	150	84	115	15	23.9	46	92
CAT50-HYS08-195	08	195	130	160	15	28.7	46	137
CAT50-HYS10-150	10	150	84	115	17	25.9	46	92
CAT50-HYS10-195	10	195	130	160	17	30.7	46	137
CAT50-HYS12-150	12	150	84	115	19	27.9	46	92
CAT50-HYS12-195	12	195	130	160	19	32.7	46	137
CAT50-HYS16-150	16	150	84	115	23	31.9	52.5	91
CAT50-HYS16-195	16	195	129	160	23	36.6	52.5	135
CAT50-HYS20-150	20	150	84	115	28	36.9	60	91
CAT50-HYS20-195	20	195	129	160	28	41.6	60	135
CAT50-HYS25-150	25	150	84	115	37	45.9	60	91
CAT50-HYS25-195	25	195	129	160	37	50.6	60	135

Size	d	L	L1	D1	D2	D3	L	ℓ1
CAT40-HYS1/8"-90	1/8"	3.543”	1.457”	0.433”	0.5”	1.811”	4.921”	0.63”
CAT40-HYS1/8"-135	1/8"	5.315”	3.307”	0.433”	0.783”	1.811”	6.692”	0.63”
CAT40-HYS1/4"-150	1/4"	5.906”	3.307”	0.512”	0.862”	1.811”	3.622”	1.063”
CAT40-HYS1/4"-165	1/4"	6.496”	3.898”	0.512”	0.921”	1.811”	4.213”	1.063”
CAT40-HYS1/4"-195	1/4"	7.677”	5.118”	0.512”	1.051”	1.811”	5.394”	1.063”
CAT40-HYS5/16”-150	5/16”	5.906”	3.307”	0.591”	0.941”	1.811”	3.622”	1.063”
CAT40-HYS5/16”-165	5/16”	6.496”	3.898”	0.591”	1”	1.811”	4.213”	1.063”
CAT40-HYS5/16”-195	5/16”	7.677”	5.118”	0.591”	1.13”	1.811”	5.394”	1.063”
CAT40-HYS3/8”-150	3/8”	5.906”	3.307”	0.669”	1.02”	1.811”	3.622”	1.299”
CAT40-HYS3/8”-165	3/8”	6.496”	3.898”	0.669”	1.079”	1.811”	4.213”	1.299”
CAT40-HYS3/8”-195	3/8”	7.677”	5.118”	0.669”	1.209”	1.811”	5.394”	1.299”
CAT40-HYS1/2”-150	1/2”	5.906”	3.307”	0.787”	1.138”	1.811”	3.622”	1.417”
CAT40-HYS1/2”-165	1/2”	6.496”	3.898”	0.787”	1.197”	1.811”	4.213”	1.417”
CAT40-HYS1/2"-195	1/2”	7.677”	5.118”	0.787”	1.327”	1.811”	5.394”	1.417”
CAT40-HYS5/8"-150	5/8"	5.906”	3.307”	0.906”	1.256”	2.067”	3.583”	1.575”
CAT40-HYS5/8"-180	5/8"	7.087”	4.488”	0.906”	1.378”	2.067”	4.724”	1.575”
CAT40-HYS5/8"-195	5/8"	7.677”	5.079”	0.906”	1.441”	2.067”	5.315”	1.575”
CAT40-HYS3/4"-150	3/4"	5.906”	3.307”	1.102”	1.453”	2.362”	3.583”	1.575”
CAT40-HYS3/4"-180	3/4"	7.087”	4.488”	1.102”	1.575”	2.362”	4.724”	1.575”
CAT40-HYS3/4"-195	3/4"	7.677”	5.079”	1.102”	1.638”	2.362”	5.315”	1.575”
CAT40-HYS1”-150	1”	5.906”	3.307”	1.496”	1.846”	2.362”	3.583”	1.969”
CAT40-HYS1”-180	1”	7.087”	4.488”	1.496”	1.969”	2.362”	4.724”	1.969”
CAT40-HYS1”-195	1”	7.677”	5.079”	1.496”	2.031”	2.362”	5.315”	1.969”

Size	d	L	L1	L2	D1	D2	D3	ℓ	ℓ1
CAT50-HYS1/4”-150	1/4”	5.906”	3.307”	4.528”	0.512”	0.862”	1.811”	3.622”	1.063”
CAT50-HYS1/4”-180	1/4”	7.087”	4.488”	5.709”	0.512”	1.051”	1.811”	4.803”	1.063”
CAT50-HYS1/4”-195	1/4”	7.677”	5.118”	6.299”	0.512”	1.051”	1.811”	5.394”	1.063”
CAT50-HYS5/16”-150	5/16”	5.906”	3.307”	4.528”	0.591”	0.941”	1.811”	3.622”	1.063”
CAT50-HYS5/16”-180	5/16”	7.087”	4.488”	5.709”	0.591”	1.13”	1.811”	4.803”	1.063”
CAT50-HYS5/16”-195	5/16”	7.677”	5.118”	6.299”	0.591”	1.13”	1.811”	5.394”	1.063”
CAT50-HYS3/8”-150	3/8”	5.906”	3.307”	4.528”	0.669”	1.02”	1.811”	4.803”	1.299”
CAT50-HYS3/8”-180	3/8”	7.087”	4.488”	5.709”	0.669”	1.209”	1.811”	5.394”	1.299”
CAT50-HYS3/8”-195	3/8”	7.677”	5.118”	6.299”	0.669”	1.209”	1.811”	5.394”	1.299”
CAT50-HYS1/2"-150	1/2"	5.906”	3.307”	4.528”	0.787”	1.138”	1.811”	3.622”	1.417”
CAT50-HYS1/2"-180	1/2"	7.087”	4.488”	5.709”	0.787”	1.26”	1.811”	4.803”	1.417”
CAT50-HYS1/2"-195	1/2"	7.677”	5.118”	6.299”	0.787”	1.327”	1.811”	5.394”	1.417”
CAT50-HYS5/8"-150	5/8"	5.906”	3.307”	4.528”	0.906”	1.256”	2.067”	3.583”	1.575”
CAT50-HYS5/8"-180	5/8"	7.087”	4.488”	5.709”	0.906”	1.441”	2.067”	4.724”	1.575”
CAT50-HYS5/8"-195	5/8"	7.677”	5.079”	6.299”	0.906”	1.441”	2.067”	5.315”	1.575”
CAT50-HYS3/4"-150	3/4"	5.906”	3.307”	4.528”	1.102”	1.453”	2.362”	3.583”	1.575”
CAT50-HYS3/4"-180	3/4"	7.087”	4.488”	5.709”	1.102”	1.638”	2.362”	4.724”	1.575”
CAT50-HYS3/4"-195	3/4"	7.677”	5.079”	6.299”	1.102”	1.638”	2.362”	5.315”	1.575”
CAT50-HYS1”-150	1”	5.906”	3.307”	4.528”	1.496”	1.846”	2.362”	3.583”	1.969”
CAT50-HYS1”-180	1”	7.087”	4.488”	5.709”	1.496”	1.969”	2.362”	4.724”	1.969”
CAT50-HYS1”-195	1”	7.677”	5.079”	6.299”	1.496”	2.031”	2.362”	5.315”	1.969”
