Shrink Fit Chuck – Types & Features

Table of Content [Hide]

General Features of Shrink Fit Chucks

· High Precision: Excellent concentricity with minimal runout, ideal for precision machining

· High Clamping Force: Thermal expansion principle ensures strong and slip-free clamping

· High Rigidity: One-piece design provides superior vibration resistance

· Suitable for High-Speed Machining: Excellent balance performance for high-speed applications

· Low Interference: Slim design enables access to deep cavities and complex parts

· Long Service Life: No mechanical clamping components, resulting in minimal wear

· Wide Application Range: Suitable for milling, drilling, and finishing operations

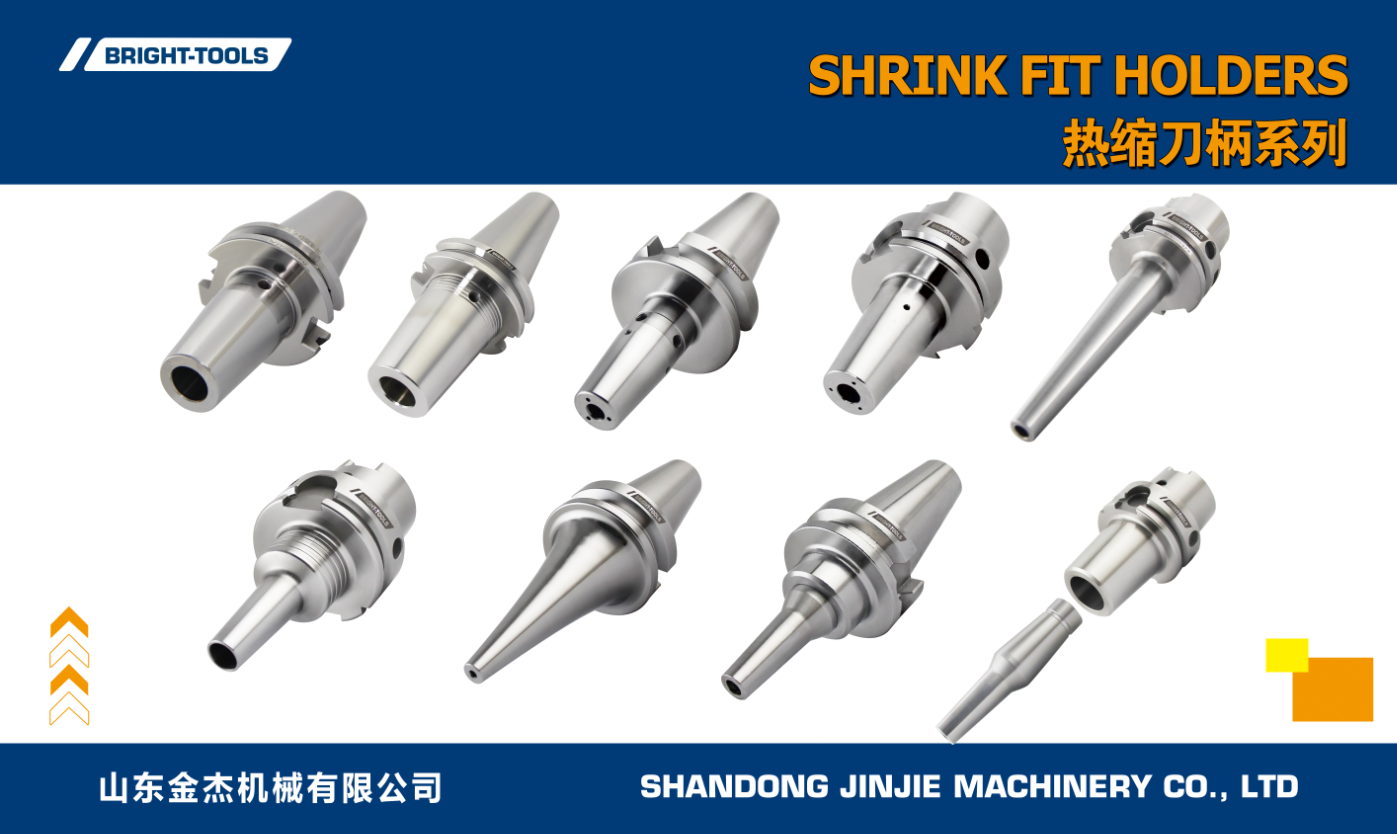

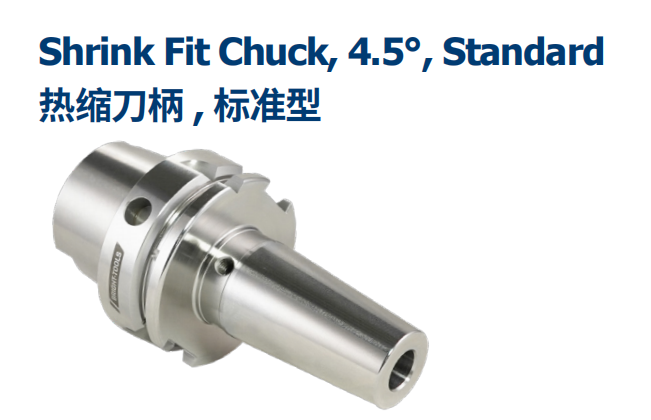

1. Standard Type (4.5° Standard)

Features:

· Strong versatility for general applications

· Stable structure with high cost-performance ratio

· Suitable for general milling and drilling

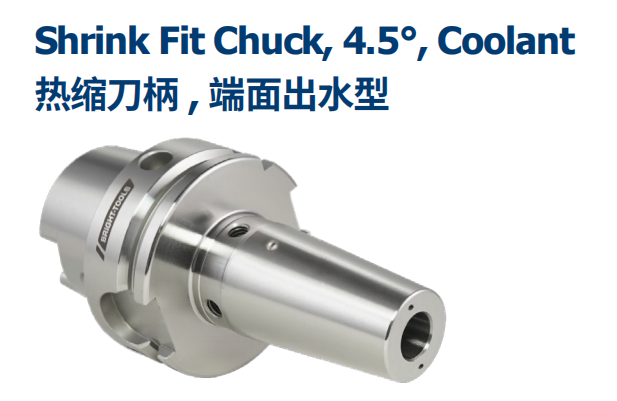

2. Coolant Through Type (4.5° Coolant)

Features:

· Internal coolant design with coolant delivered through the tool center

· Improves tool life and reduces chip adhesion

· Ideal for deep hole machining and high-temperature conditions

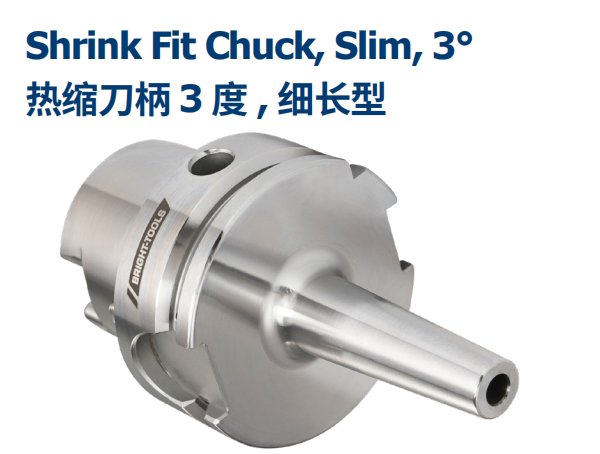

3. Slim Type (3° Slim)

Features:

· Reduced taper design for minimal interference

· Suitable for deep cavities and complex workpieces

· Enhances machining flexibility

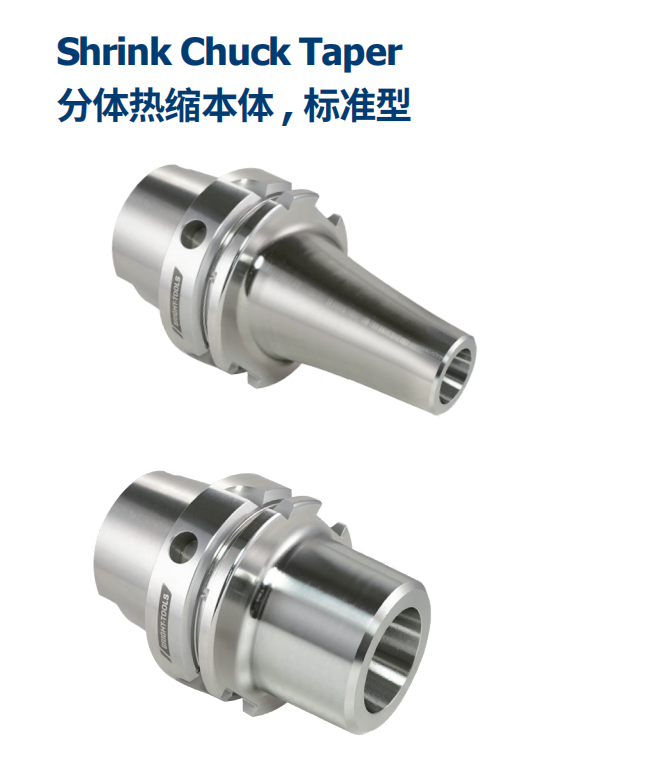

4. Modular Taper Type (Shrink Chuck Taper)

Features:

· Replaceable taper structure

· Reduces cost by replacing only the front part

· Easy maintenance, suitable for batch production

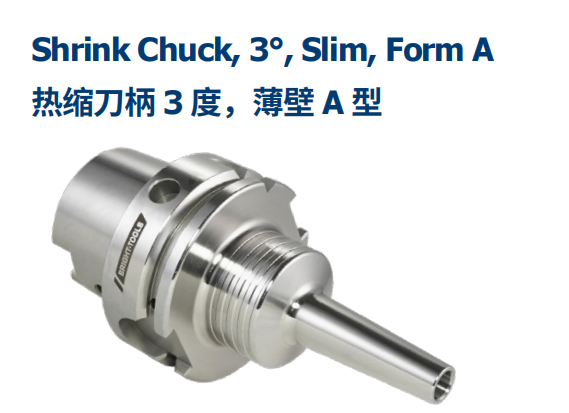

5. 3° Slim Form A

Features:

· Ultra-slim design with minimal interference

· Ideal for precision mold machining

· Suitable for high-speed machining with small diameter tools

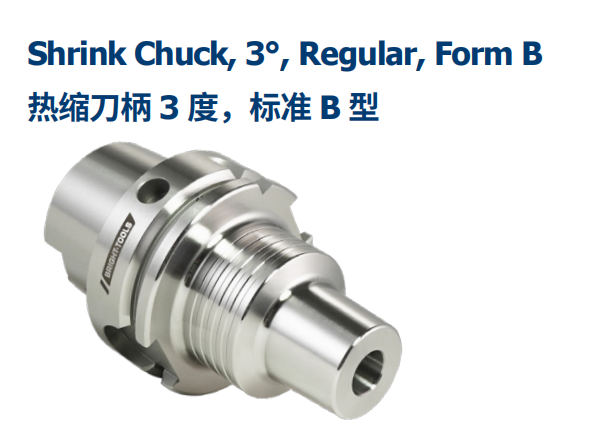

6. 3° Regular Form B

Features:

· Balanced rigidity and slim design

· Wide application range

· More stable than ultra-slim types

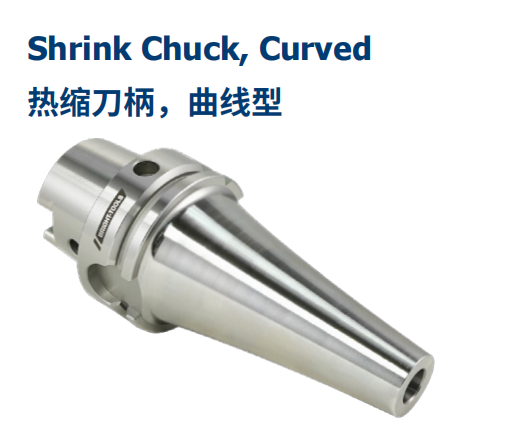

7. Curved Type

Features:

· Special contour design to avoid interference

· Improves capability in complex surface machining

· Commonly used in mold and 5-axis machining

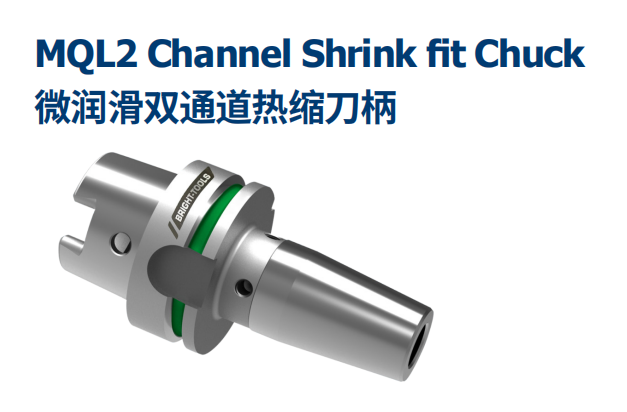

8. MQL Channel Type

Features:

· Supports Minimum Quantity Lubrication (MQL)

· Reduces coolant consumption

· More environmentally friendly, suitable for dry or near-dry machining
